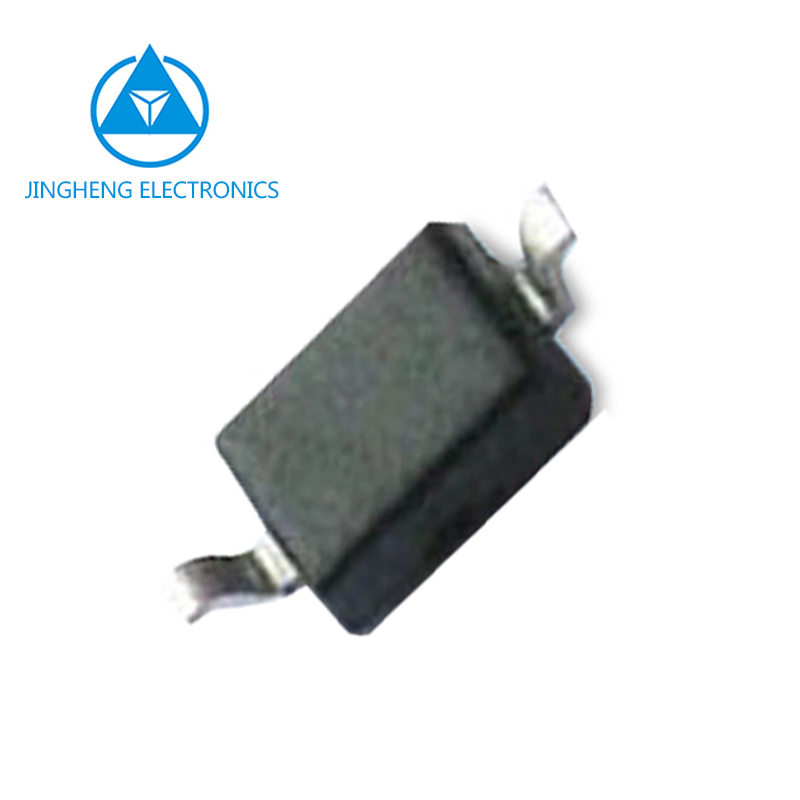

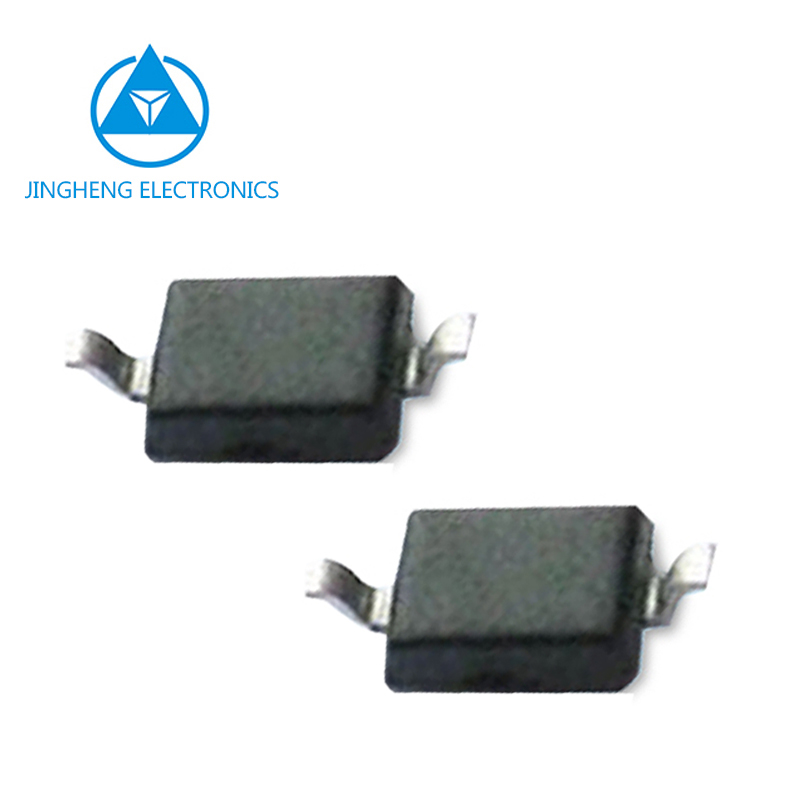

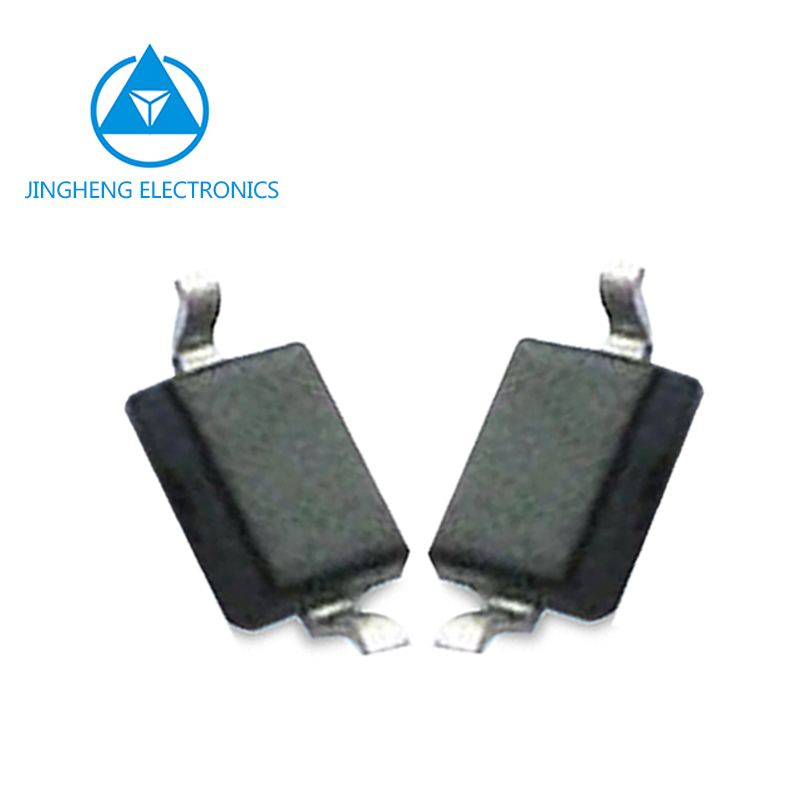

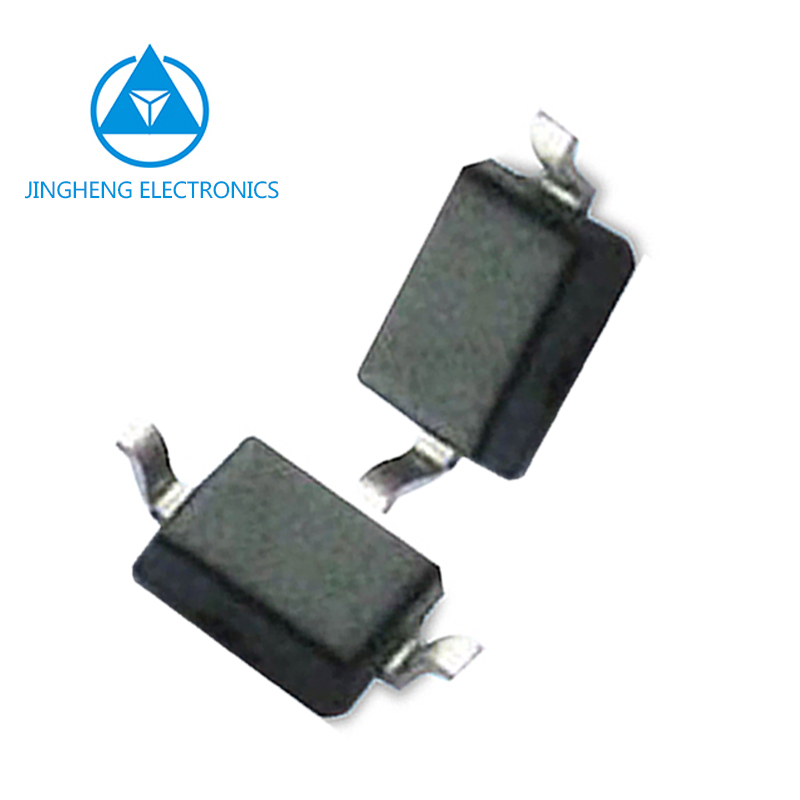

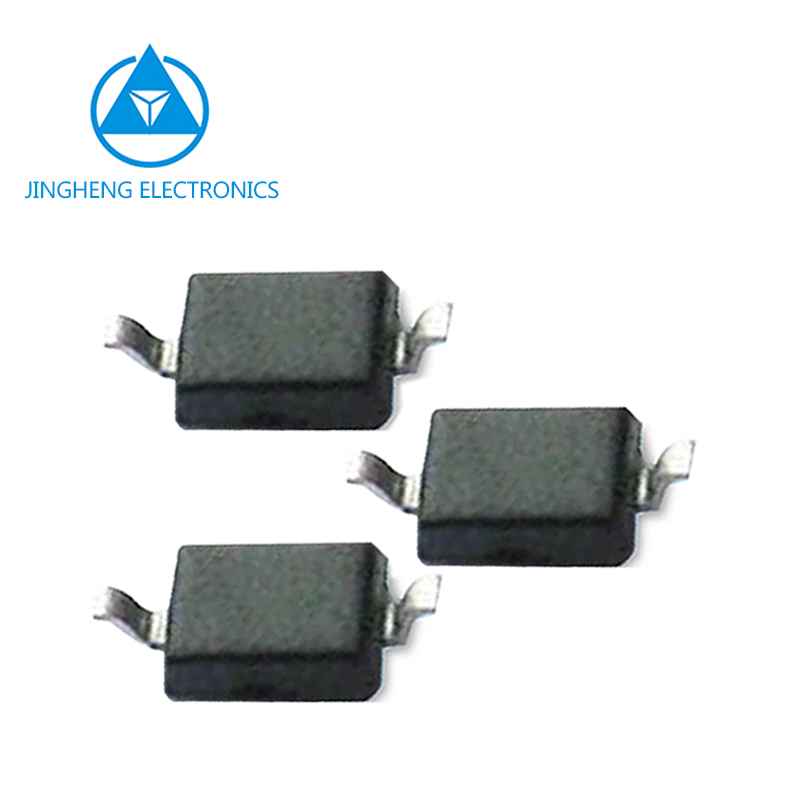

Surface Mount Zener Diode
MM3Z Series include: MM3Z2V0 thru MM3Z75
Power: 0.3W ( 300mW )

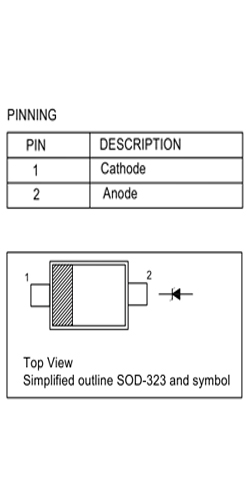

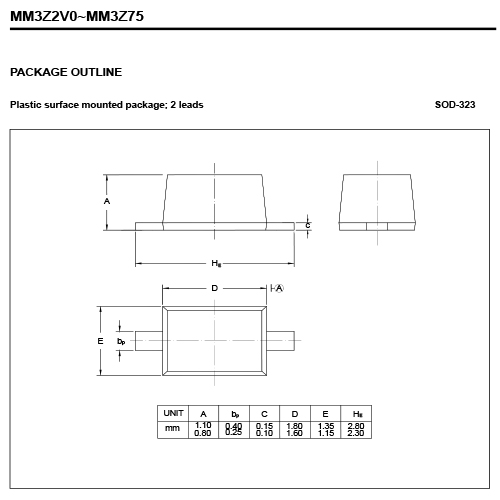

Package: SOD-323
Recommendation: The dimension of SOD-323 Package is smaller than that of SOD-123. MM3Z series is easy to grasp and with stable parameters. We both have 5% and 2% Tolerance for the device.
Surface Mount Zener Diode
MM3Z Series include: MM3Z2V0 thru MM3Z75
Power: 0.3W ( 300mW )
Package: SOD-323
Recommendation: The dimension of SOD-323 Package is smaller than that of SOD-123. MM3Z series is easy to grasp and with stable parameters. We both have 5% and 2% Tolerance for the device.
FEATURES
• Total power dissipation : max. 300 mW
• Small plastic package suitable for surface mounted design
• Tolerance approximately ± 5%
MM3Z2V0~MM3Z75 Silicon Planar Zener Diodes
Absolute Maximum Ratings (T a = 25 ℃)
| Parameter | Symbol | Value | Unit |
| Power Dissipation | P tot | 300 | mW |
| Junction Temperature | T j | 150 | ℃ |
| Storage Temperature Range | T stg | - 55 to + 150 | ℃ |

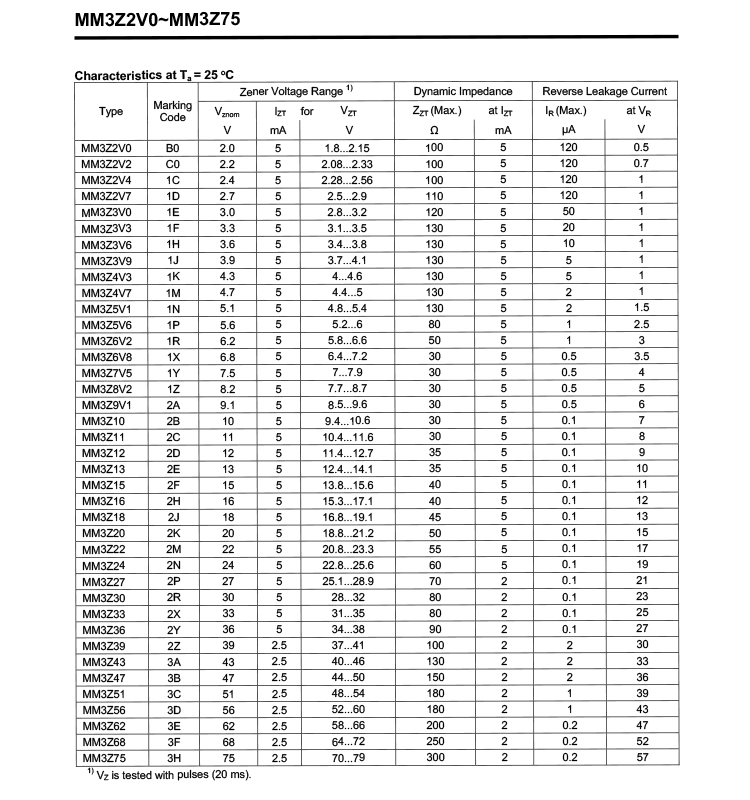

Characteristics at T a = 25 ℃
| Parameter | Symbol | Max. | Unit |
| Thermal Resistance Junction to Ambient Air | R θJA | 417 | ℃/W |
| Forward Voltage at I F = 10 mA | V F | 0.9 | V |
